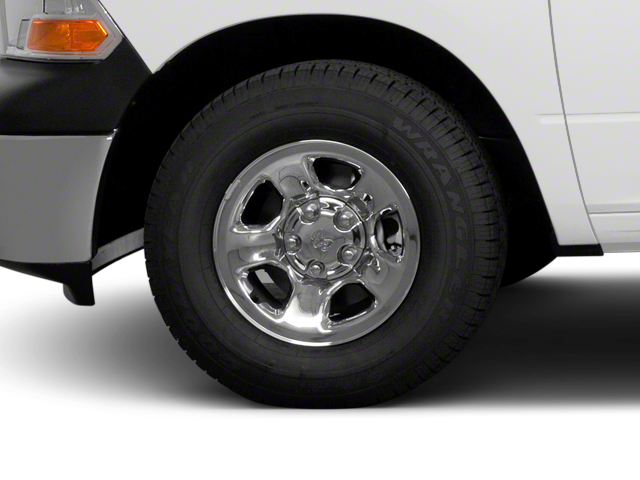

• 17" x 7" argent steel wheels
• P265/70R17 all-season BSW tires
• 17" steel spare wheel
• Full-size spare tire
• Tire carrier winch
• Gray front bumper
• Dark gray rear bumper w/step pad
• Gray upper front fascia
• Front wheel air deflectors
• Rear wheel air deflectors

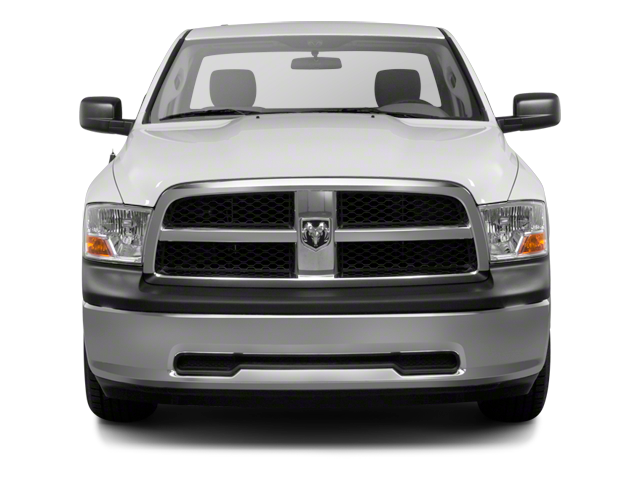

• Bright grille
• Automatic headlamps
• Halogen headlamps
• Black manual outside mirrors
• Deep tinted windows
• Fixed rear window
• Variable intermittent windshield wipers
• Cargo lamp
• Black door handles
• Front license plate bracket

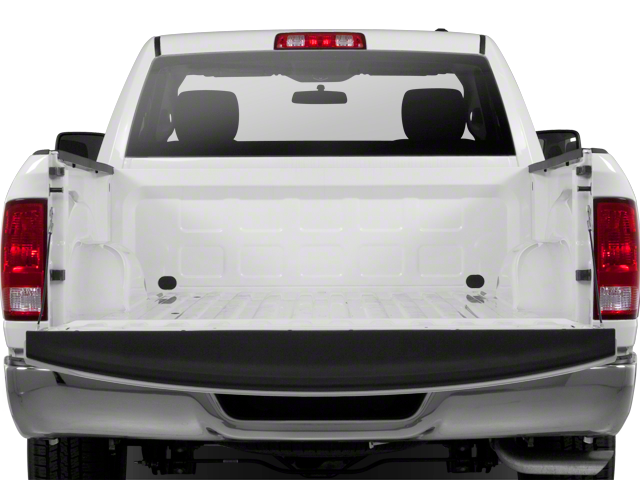

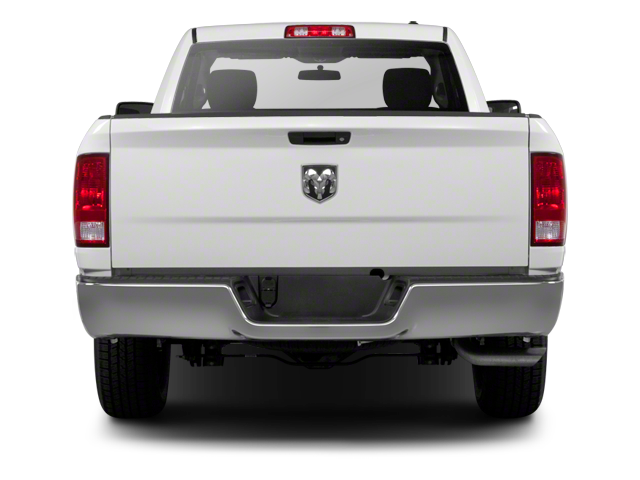

• Locking tailgate
• Body color fuel filler door

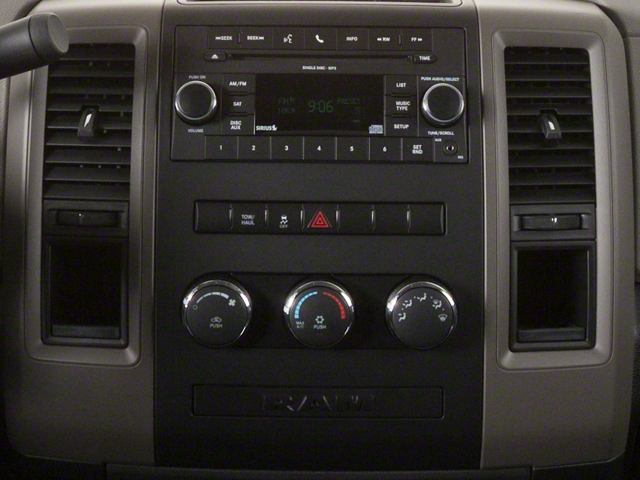

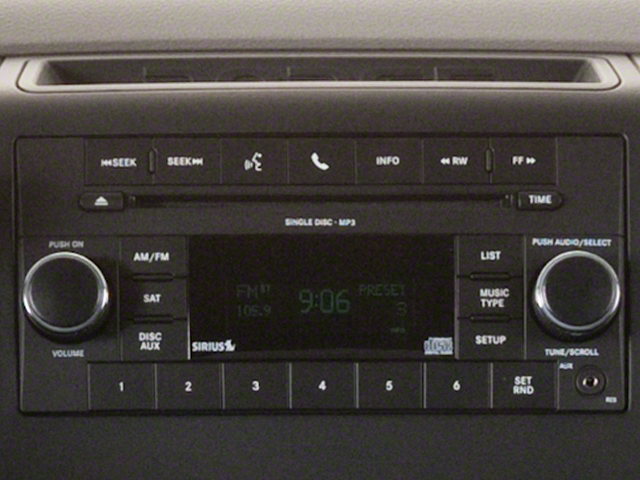

• Media Center 130 CD/MP3 radio
• Audio jack input for mobile devices
• (6) speakers
• Fixed long mast antenna

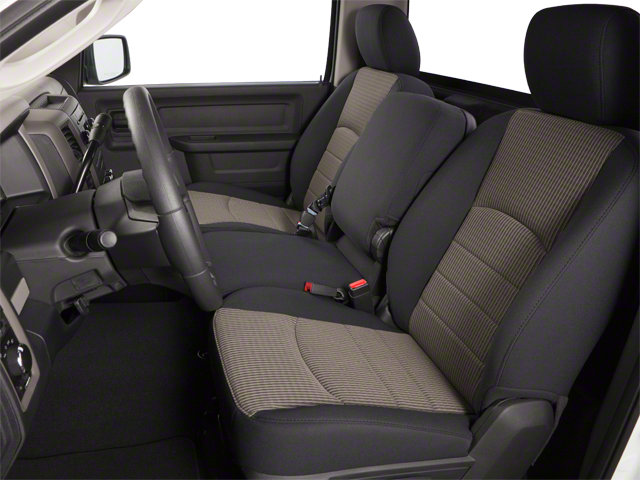

• HD vinyl 40/20/40 bench seat w/manual adjusters
• Black vinyl floor covering
• Floor tunnel insulation

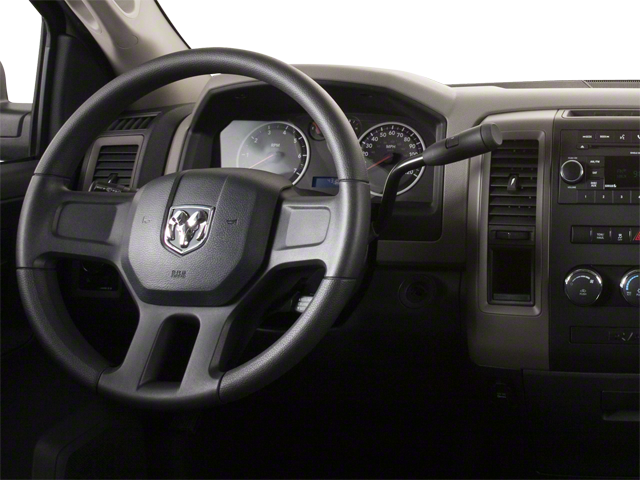

• Tilt steering column
• Instrument cluster w/tachometer
• Pwr accessory delay
• Sentry Key theft deterrent system
• Air conditioning

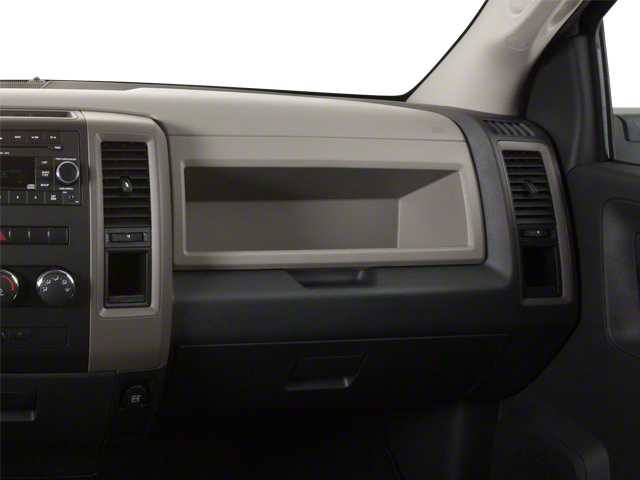

• Black instrument panel bezel
• 12V aux pwr outlet
• Vinyl door trim
• Day/night rearview mirror
• Dual assist handles
• Dome lamp
• Column-mounted shifter
• Behind the seat storage bin
• Dual note horn

• Brake assist
• Electronic stability program
• Driver/front passenger multistage airbags
• Front seat side-impact airbags
• Front side curtain airbags
• Front-passenger occupant-classification system
• Front seat belt height adjusters
• Tire pressure monitor w/warning lamp

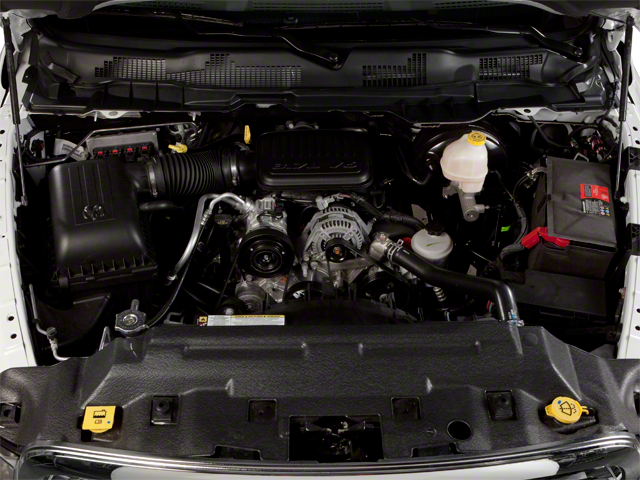

4.7L V8 FLEX-FUEL ENGINE

• (STD)

• Quick Order Package 24A ST
• ST Popular Equipment Group
• 6 Speakers
• AM/FM radio
• CD player
• Radio: Media Center 130 CD/MP3
• SIRIUS Satellite Radio
• Air Conditioning
• Power steering
• Traction control
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Front anti-roll bar
• Front wheel independent suspension
• Low tire pressure warning
• Occupant sensing airbag
• Overhead airbag
• Rear anti-roll bar
• Under Rail Box Bedliner
• Brake assist
• Electronic Stability Control
• Delay-off headlights
• Fully automatic headlights
• Speed Control
• Heavy-Duty Engine Cooling
• Next Generation Engine Controller
• Rear step bumper
• Carpet Floor Covering

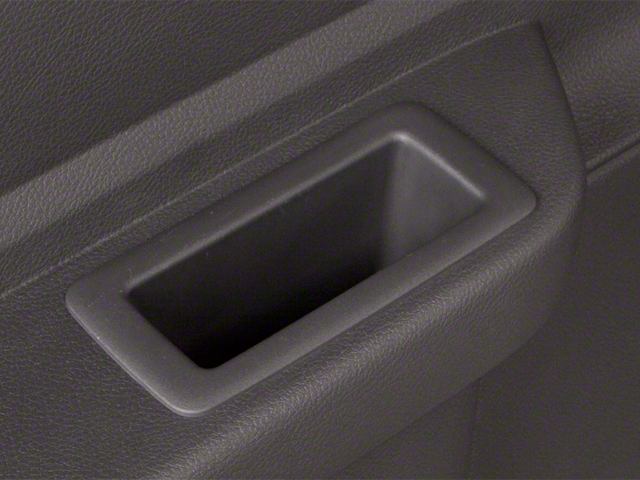

• Driver door bin
• Electronically Controlled Throttle
• Front Floor Mats
• Tachometer
• Tilt steering wheel
• Voltmeter
• 40/20/40 Split Bench Seat
• Cloth 40/20/40 Bench Seat

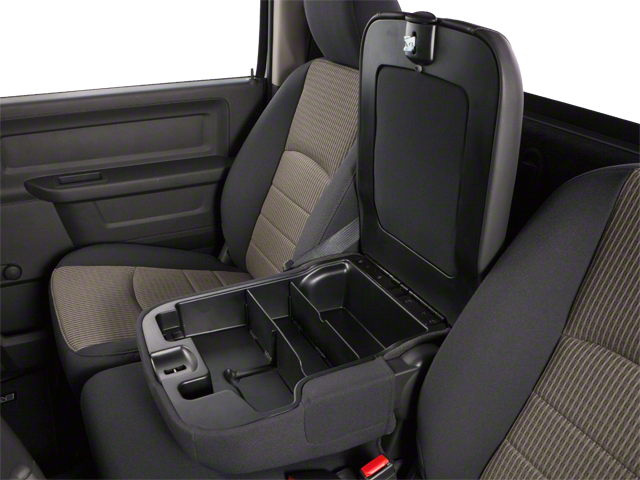

• Front Center Armrest
• Heavy Duty Vinyl 40/20/40 Split Bench Seat
• Passenger door bin
• Class IV Receiver Hitch
• Folding Trailer Tow Mirrors
• 17" x 7" Argent Steel Wheels
• Variably intermittent wipers
• 3.55 Rear Axle Ratio

• Mileage
• EPA Fuel Economy Est - City (MPG): 13
• EPA Fuel Economy Est - Hwy (MPG): 18
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 700
• Maximum Alternator Capacity (amps): 160
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 10.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3900
• Gross Axle Wt Rating - Rear (lbs): 3900
• Curb Weight - Front (lbs): 2960
• Curb Weight - Rear (lbs): 2070
• Gross Vehicle Weight Rating Cap (lbs): 6600
• Gross Combined Wt Rating (lbs): 11500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6300
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 945
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-link coil
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Rear: Solid
• Axle Capacity - Front (lbs): 3900
• Axle Capacity - Rear (lbs): 3900
• Axle Ratio (:1) - Front: 3.55
• Axle Ratio (:1) - Rear: 3.55
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.2 x 1.10
• Rear Brake Rotor Diam x Thickness (in): 13.8 x 0.87
• Tires
• Front Tire Order Code: TTM
• Rear Tire Order Code: TTM
• Spare Tire Order Code: TBB
• Front Tire Size: P265/70R17
• Rear Tire Size: P265/70R17
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.0
• Rear Wheel Size (in): 17 x 7.0
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr rack & pinion
• Steering Ratio (:1), On Center: Variable
• Steering Ratio (:1), At Lock: 3.3
• Turning Diameter - Curb to Curb (ft): 45.4
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 32
• Fuel Tank Location: Inboard Frame Rails
• Exterior Dimensions
• Wheelbase (in): 140.5
• Length, Overall w/o rear bumper (in): 231.0
• Width, Max w/o mirrors (in): 79.4
• Height, Overall (in): 75.0
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 123.7
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.9
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.0
• Ground Clearance, Rear (in): 8.6
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.3
• Cargo Box Width @ Top, Rear (in): 66.4
• Cargo Box Width @ Floor (in): 66.4
• Cargo Box Width @ Wheelhousings (in): 51.0
• Cargo Box (Area) Height (in): 20.2
• Tailgate Width (in): 60.4
• Cargo Volume (ft³): 74.7
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 40.3
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 66.0
• Front Hip Room (in): 62.9
• Summary

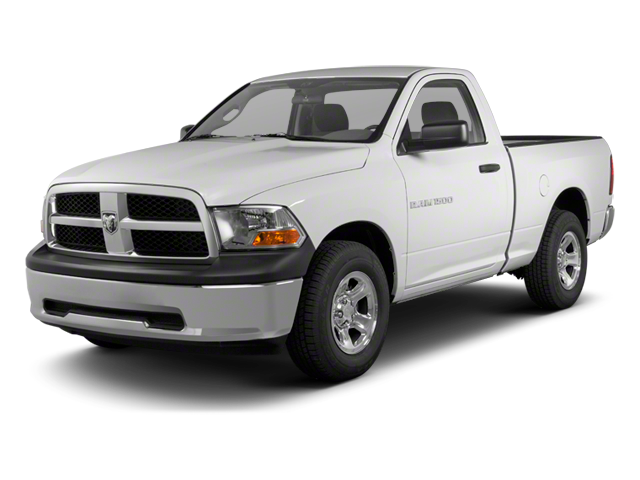

• Vehicle Name: Dodge Ram 1500
• Body Style: Reg Cab 8' Bed
• Body Code: 140.5" WB
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 12.4
